Main System Demo
Unitree G1 executes language-conditioned navigation, detects scene changes, updates memory, and verifies IPS.
Robotics: Science and Systems
Learning to Evolve: Multi-modal Interactive Fields for Robust Humanoid Navigation in Dynamic Environments
1State Key Laboratory of General Artificial Intelligence, Peking University, Shenzhen Graduate School
2Oxford Robotics Institute, University of Oxford
3Institute for Machine Learning, Department of Computer Science, ETH Zurich
Video
Humanoid Navigation and Adaptation Demo
Add your final RSS demonstration videos under docs/assets/videos/. The page is already wired for
a main demo and optional adaptation or interaction clips.
Suggested Additional Clips
assets/videos/adaptation.mp4: dynamic scene graph update after object relocation.assets/videos/interaction.mp4: mesh recovery and interaction-pose safety verification.
Abstract
Robust Scene Memory for Humanoid Robots
Safe manipulation-oriented navigation for humanoid robots requires scene memory that remains reliable under locomotion-induced perceptual distortion, environmental changes, and interaction-level geometric safety constraints. MIF integrates confidence-aware semantic 3D Gaussian Splatting, discrepancy-triggered spatial memory updates, and task-driven geometric reconstruction in a closed-loop perception-adaptation pipeline. On a Unitree G1 humanoid in a real dynamic office, MIF improves relocation success from 12% to 94% compared with static scene-graph memory, while reducing semantic memory footprint by 91.4%.
Method

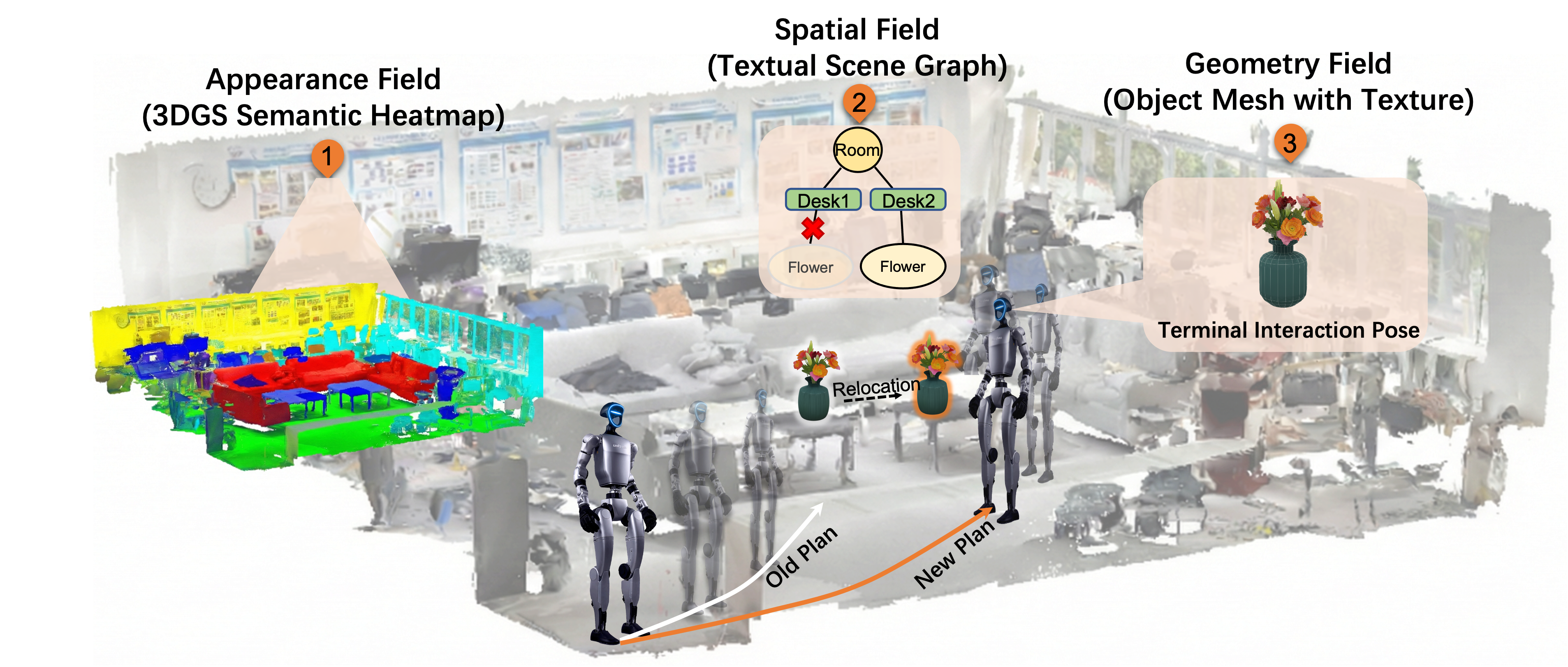

Three Coupled Fields
MIF treats scene memory as a locally revisable system representation, grounding language queries into spatial memory and interaction-ready geometry.
Appearance Field
Builds a confidence-aware semantic 3DGS representation and suppresses gait-corrupted primitives during rendering and graph construction.
Spatial Field
Maintains topological scene memory and triggers local updates when persistent multi-modal discrepancies indicate relocated, removed, or newly introduced objects.
Geometry Field
Recovers object-centric meshes on demand and verifies terminal humanoid poses through interaction-pose safety checks.
Results
Real-World Dynamic Office Evaluation
The full ROS1 system runs on a centralized RTX 4090 workstation and communicates with a Unitree G1 humanoid during navigation and interaction trials.
94%IPS success
91.4%semantic memory reduction
0%observed collision rate
0.12mmean terminal error
IPS Success
Dense geometry makes interaction poses safer
Memory Reduction
Feature distillation keeps memory practical
Navigation Error
Stable tracking for humanoid navigation
Collision Rate
Local memory updates avoid obsolete collision-prone paths
Gallery
Paper Figures
Supplementary qualitative figures are shown as compact panels so large source images do not dominate the page.
Real Robot Experiments
Real-world Unitree G1 patrol, navigation, replanning, and object retrieval sequences.
Reconstructed Object Meshes
Object meshes generated by the Geometry Field.
Mesh vs Sparse Point Cloud
Continuous watertight geometry exposes collision constraints missed by sparse centroids.
Appearance Field Quality
Denoised mapping quality and appearance-field memory update.
Citation
BibTeX
@inproceedings{jiang2026mif,
title={Learning to Evolve: Multi-modal Interactive Fields for Robust Humanoid Navigation in Dynamic Environments},
author={Jiang, Peifeng and Liu, Hong and Wang, Wenshuai and Jin, Jin and Li, Xia},
booktitle={Robotics: Science and Systems},
year={2026}
}
